Hesco Bastion

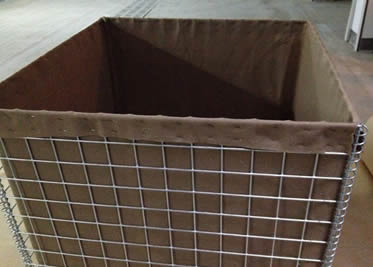

Bastions are formed similar to gabions but are factory lined internally with a non woven geotextile membrane to the perimeter mesh panels of the unit allowing for the use of suitable selected granular fills to ensure compaction of the materials without settlement.

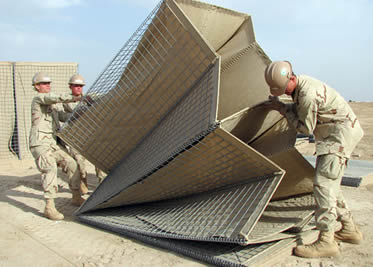

These units are modular in section and fold in a concertina fashion for ease of transportation and erection on site. They are available in a variety of different sizes and lengths to suit the application.

Hesco Bastion
Product Height Width Length
Standard
MIL1 5442 54" (1.37m) 42" (1.06m) 32'9" (10m)
MIL2 2424 24" (0.61m) 24" (0.61m) 4' (1.22m)
MIL3 3939 39" (1.00m) 39" (1.00m) 32'9" (10m)
MIL4 3960 39" (1.00m) 60" (1.52m) 32'9" (10m)
MIL5 2424 24" (0.61m) 24" (0.61m) 10' (3.05m)
MIL6 6624 66" (1.68m) 24" (0.61m) 10' (3.05m)
MIL7 8784 87" (2.21m) 84" (2.13m) 91' (27.74m)
MIL8 5448 54" (1.37m) 48" (1.22m) 32'9" (10m)
MIL9 3930 39" (1.00m) 30" (0.76m) 30' (9.14m)
MIL10 8760 87" (2.21m) 60" (1.52m) 100' (30.50m)
MIL11 4812 48" (1.22m) 12" (0.30m) 4' (1.22m)
MIL12 8442 84" (2.13m) 42" (1.06m) 108' (33m)
MIL19 10842 108" (2.74m) 42" (1.06m) 10'5" (3.18m)

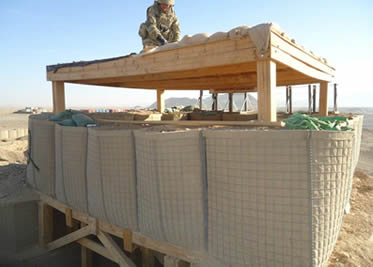

Bastions can be used as temporary structures on civil engineering construction sites or as rapid deployment flood protection barriers in place of sandbags in certain circumstances.

When used for temporary works they should be properly engineered as gravity retaining walls. For temporary retaining structures a suitable drainage fill should be incorporated through the structure at regular intervals along the wall length to prevent build up of hydrostatic pressure. Bastions are not free draining like stone filled gabion structures.

For flood defence purposes bastions should be sand filled. It is also common practice for the front face to be additionally externally lined with an impermeable liner.
